Why Are Radar Level Meters The First Choice for Industrial Measurement?

The Ultimate Guide to Radar Level Meters: Principles, Selection and Industry Applications

Why are radar level meters the first choice for industrial measurement?

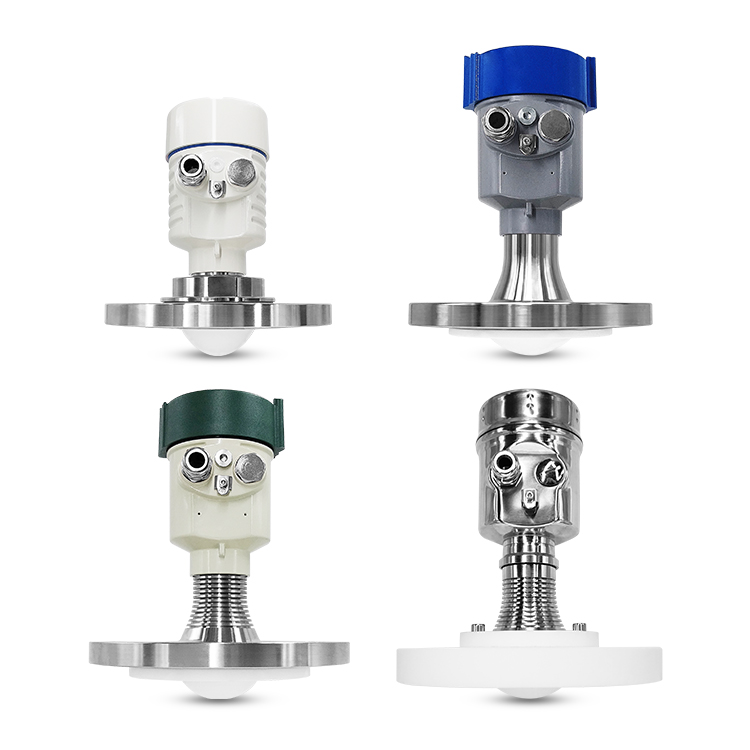

Radar level meters (Radar Level Transmitter) have become the core measurement equipment in the petrochemical, food and beverage, water treatment and other industries due to their advantages of non-contact measurement, high precision and strong anti-interference. Compared with traditional float and ultrasonic level meters, radar level meters are not affected by temperature, pressure and dust, have low maintenance costs and long life, and are ideal for modern smart factories.

This article will deeply analyze the working principle, selection techniques and installation points of radar level meters, and share the best application cases in the industry to help you choose the most suitable solution!

1. How does a radar level meter work?

Radar level meters transmit high-frequency electromagnetic waves (6GHz/26GHz/80GHz) and measure the time difference from microwave emission to reflection back to the antenna to calculate the liquid level. Its core technologies include:

Pulse radar: suitable for large storage tanks (30m+ range), economical and practical.

FMCW (Frequency Modulated Continuous Wave) radar: higher accuracy (±1mm), suitable for interface measurement (such as oil-water separation).

Guided wave radar (TDR): suitable for low dielectric constant media (such as liquefied gas), the signal is more stable.

�� Key advantages:

✅ Non-contact: no contact with the medium, no wear

✅ High precision: the error can be as low as ±1mm (80GHz model)

✅ Anti-interference: not affected by foam, steam, dust

✅ Maintenance-free: no mechanical moving parts, life span 10 years+

2. How to choose the best radar level meter?

(1) Select by frequency

Frequency Applicable Scenarios Advantages Typical Models

6GHz Large storage tanks, solid silos Strong penetration, low cost

26GHz General liquids, corrosive media Balanced accuracy and price

80GHz Small containers, high-precision measurement Small beam angle (3°), strong anti-interference (2) Select by antenna type

Horn antenna: Applicable to most liquids and granular solids

Parabolic antenna: Ultra-long range

Waveguide rod: Low dielectric constant medium

(3) Select by industry needs

Petrochemical: High temperature and high pressure resistance

Food and pharmaceutical: Sanitary design

Water treatment: Anti-foam interference

3. Key tips for installation and maintenance

✅ Correct installation points

Avoid the feed port to prevent false echoes

Vertical installation (tilt <3°)

Ensure the minimum blind area (usually 0.3-0.5m)

Keep away from the agitator (distance >2m)8

⚠ Common mistakes

❌ Install in the center of the tank (causing multiple reflections)

❌ Ignore the influence of the foam layer (need to select 80GHz radar)1

❌ Uncalibrated zero point (causing measurement deviation)

�� Maintenance recommendations

Clean the antenna monthly (wipe with alcohol)

Check signal strength every quarter

Calibrate once a year

4. Industry success cases

Case 1: Chemical liquid alkali storage tank (foam + stirring interference)

Challenge: 10cm foam layer + continuous stirring, large fluctuations in traditional radar data

Solution: Use 80GHz high-frequency radar + dynamic filtering algorithm

Effect: Liquid level error <±2mm, annual raw material savings of 80 tons1

Case 2: Brewery acid water storage tank (strong corrosion + fast liquid inlet)

Challenge: Full tank in 3 minutes, violent fluctuations in liquid level

Solution: High-frequency radar + corrosion-resistant 316L material

Effect: Real-time error ±2mm, no maintenance for half a year7

Case 3: LNG storage tank (-162℃ ultra-low temperature)

Challenge: Extremely low temperature causes traditional instruments to fail

Solution: Low-temperature compensation guided wave radar

Effect: Stable operation for 3 years, accuracy ±3mm

�� Consult an expert now to get a customized solution!
